KDM Aeroforce Interceptor

$250.00$560.00

-

SKU: AeroforceInterceptorKDM Categories: , , , , , , , ,

Description

The Aeroforce gauges are an all in one solution that plugs into your OBD port and allows for fast multiple parameter reading. It will show you basically any info you want to know about your car and fit in a standard 52 mm pod. I’ve had these on just about every one of my cars and was thrilled to help bring them to the Veloster platform!

The vt1, 2 and es has the abililty to read up to 28 psi on it due to being able to read all the hyundai advanced parameters (reads AFR, both boost sensors, knock, misfires, inj PW, oil temp for hyundai)

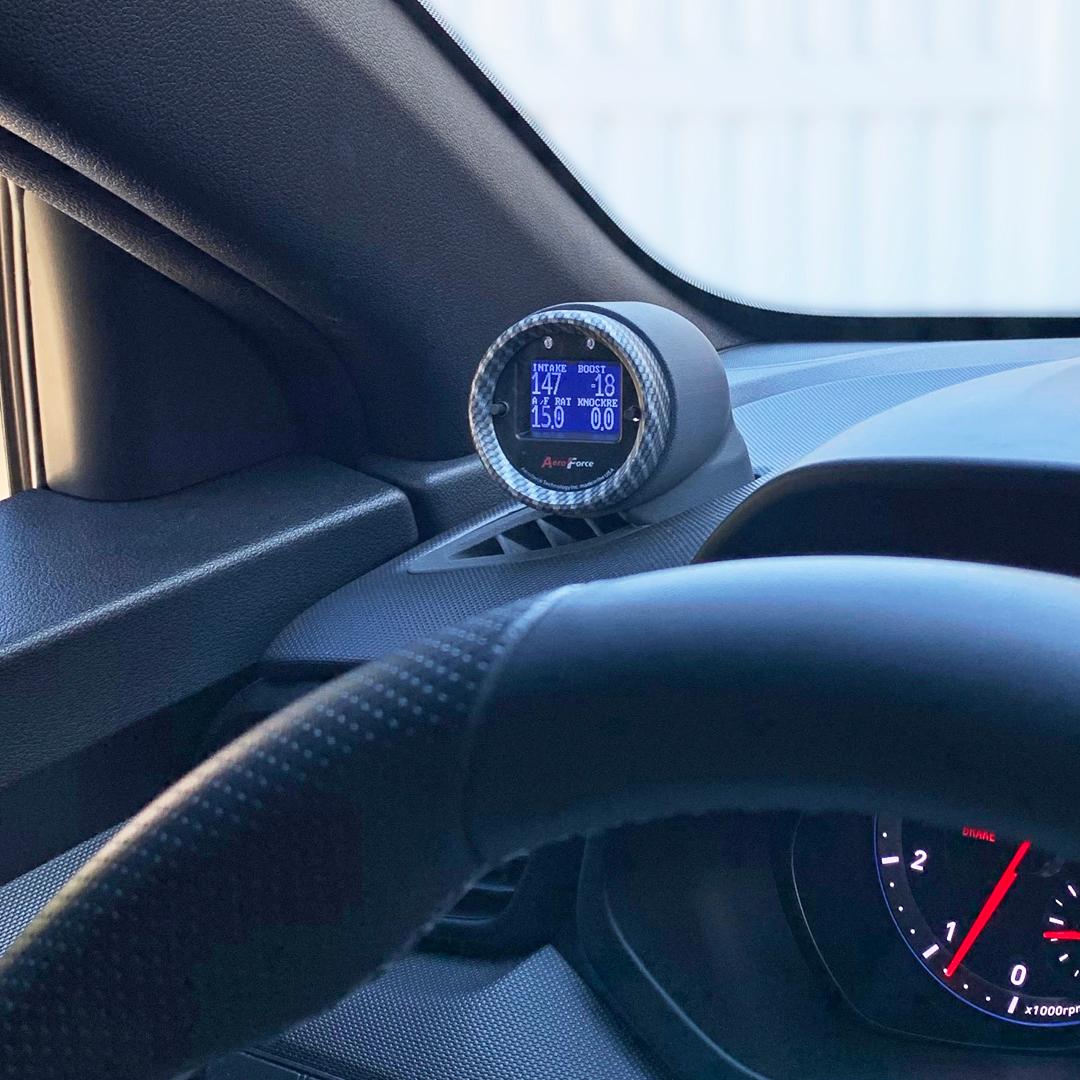

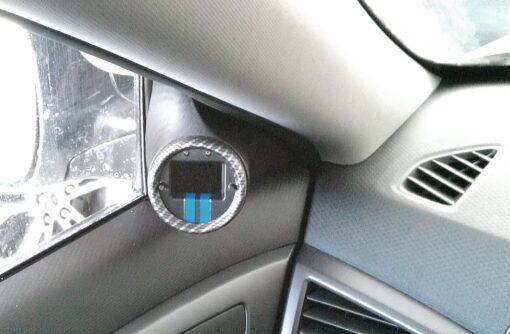

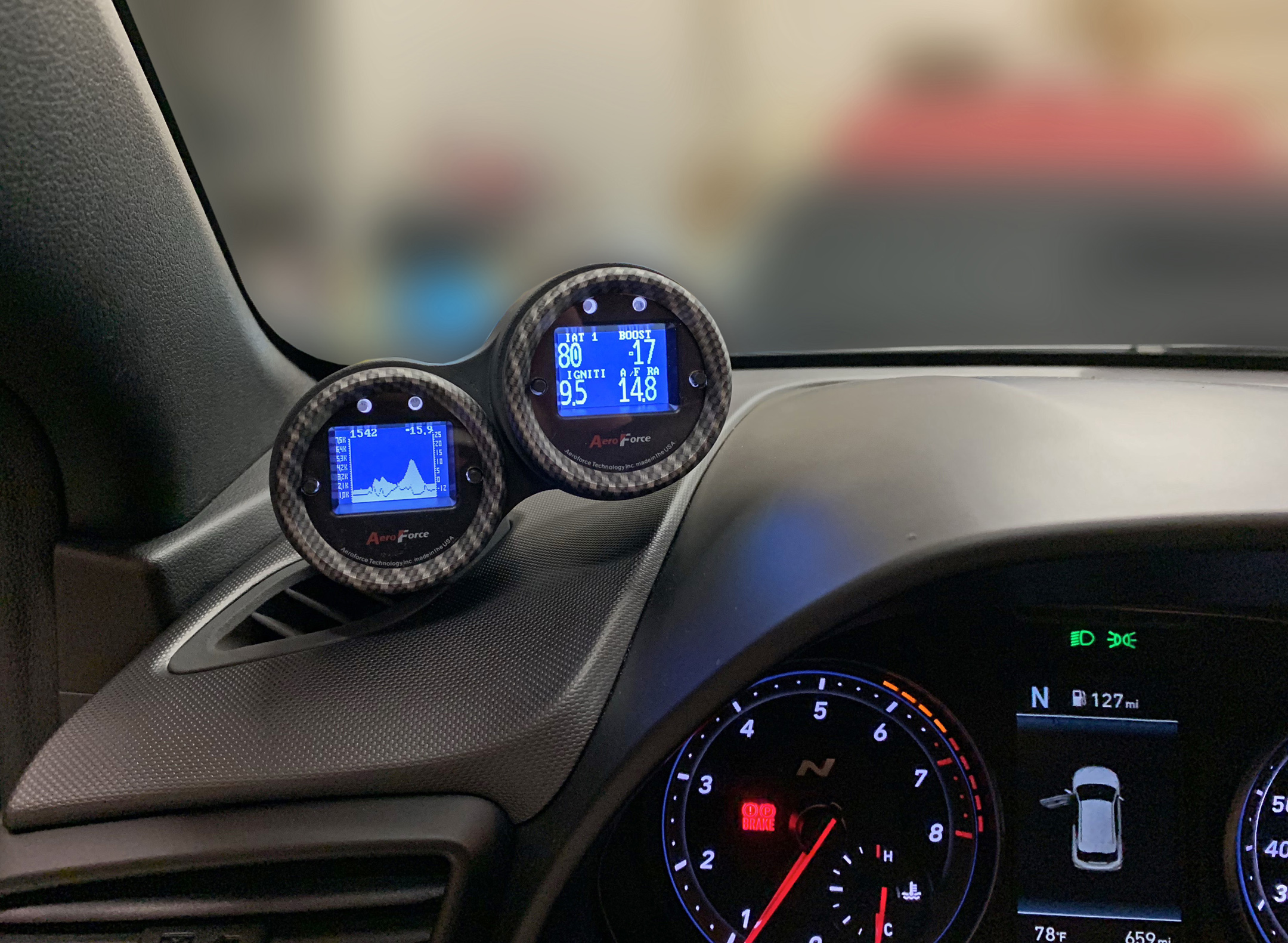

In addition to the gauge they also make gauge pods to house them for the gen 1 and gen 2 veloster

Please see the list of options for color, pod and such 🙂

Here is the latest list of supported parameters for both the gen 1 and 2 Velosters:

1.  INTAKE AIR TEMP
2.  AMBIENT AIR TEMP
3.  COOLANT TEMP
4.  RPM
5.  Boost inHg PSI (S1):  Boost pressure from Sensor 1, will read vacuum but limited to ~22.5 psi
6.  THROTTLE %
7.  CAT CON TEMP B1
8.  CAT CON TEMP B2
9.  MILES PER HOUR
10.  IGNITION ADVANCE
11.  SHORT TERM FUEL TRIM bank 1
12.  SHORT TERM FUEL TRIM bank 2
13.  LONG TERM FUEL TRIM bank 1
14.  LONG TERM FUEL TRIM bank 2
15.  FUEL RAIL PRESSURE DI:  fuel rail pressure with direct injection system. * Does not work on N models
16.  BATTERY VOLTAGE
17.  ENGINE LOAD
18.  RUN TIME:  Engine run time since last start
19.  BAROMETER
20.  BATTERY VOLTAGE
21.  LAMBDA
22.  COMMANDED EQUIVALENCY RATIO*
23.  COMMANDED AIR/FUEL RATIO*
24.  A/F RATIO:  Air-fuel ratio
25.  CURREST GEAR:  Auto trans

these are part of the advanced parameters and due to how the canbus communicates will not display if you have a dual setup!
——
26.  BOOST S2: Boost press. from sensor 2, doesn’t read vacuum, reads boost up to 29.5 psi.
27.  INJ TM C1 MS:  Injector pulse width cyl 1 in msec.
28.  ENG OIL T:  Engine oil temp
29.  KNOCK RETARD CYL 1
30.  KNOCK CYL 2
31.  KNOCK CYL 3
32.  KNOCK CYL 4
33.  MISFIRE CYL 1
34.  MISFIRE CYL 2
35.  MISFIRE CYL 3
36.  MISFIRE CYL 4
37.  MISFIRE SUM 1:  Gen 2 “N” models
38.  MISFIRE SUM 2:               “
39.  MISFIRE SUM 3:               “
40.  MISFIRE SUM 4:               “
41.  ANALOG 1 – analog input #1
42.  ANALOG 2 – analog input #2



Additional information

Weight 3 lbs
Dimensions 10 × 8 × 7 in
Gauge amount

Single, dual [+150]

Gauge color

White, Red, Blue, Green

Gauge pod

no, Yes veloster gen 1 ( 12-18) [+100], Yes gen 2 veloster (19+) [+100], yes Gen 2 veloster dual pod (19+) [+140]

Custom Face

No, Yes (veloster) [+10], Yes (N) [+10]
